Description

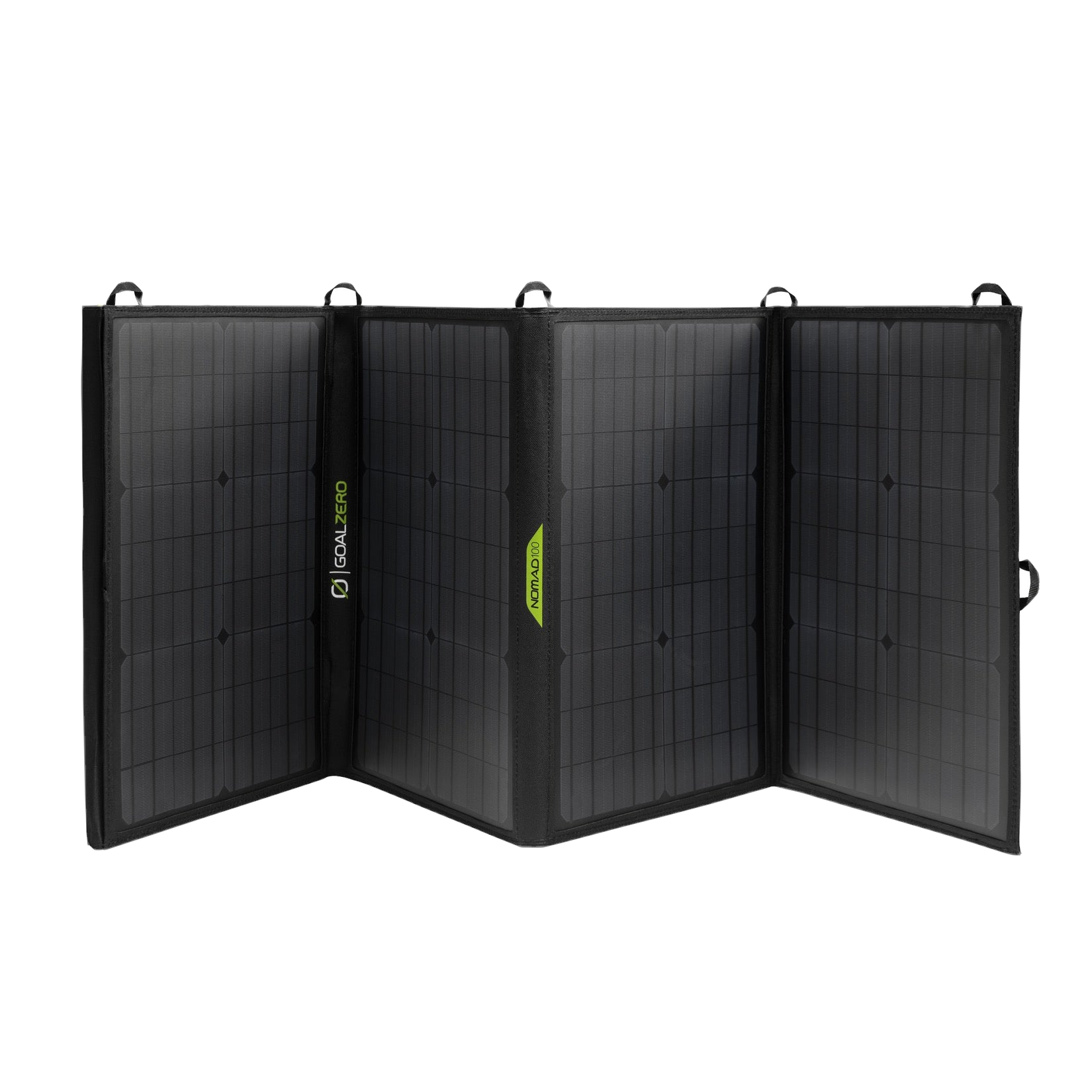

Goal Zero Nomad 100 Solar Panel
A folding panel with a specific 8mm solar connection.
The Nomad 100 lists 100W output and a blue 8mm male solar connector; check the receiving device’s input requirements.
Choose the panel to fit the installation and the receiving equipment. The panel format, mounting method and electrical input requirements all affect the setup.
Match the panel to its destination.
Rated solar output: 100W Solar output changes with weather, shading, angle and temperature rather than remaining at the rated figure throughout the day.

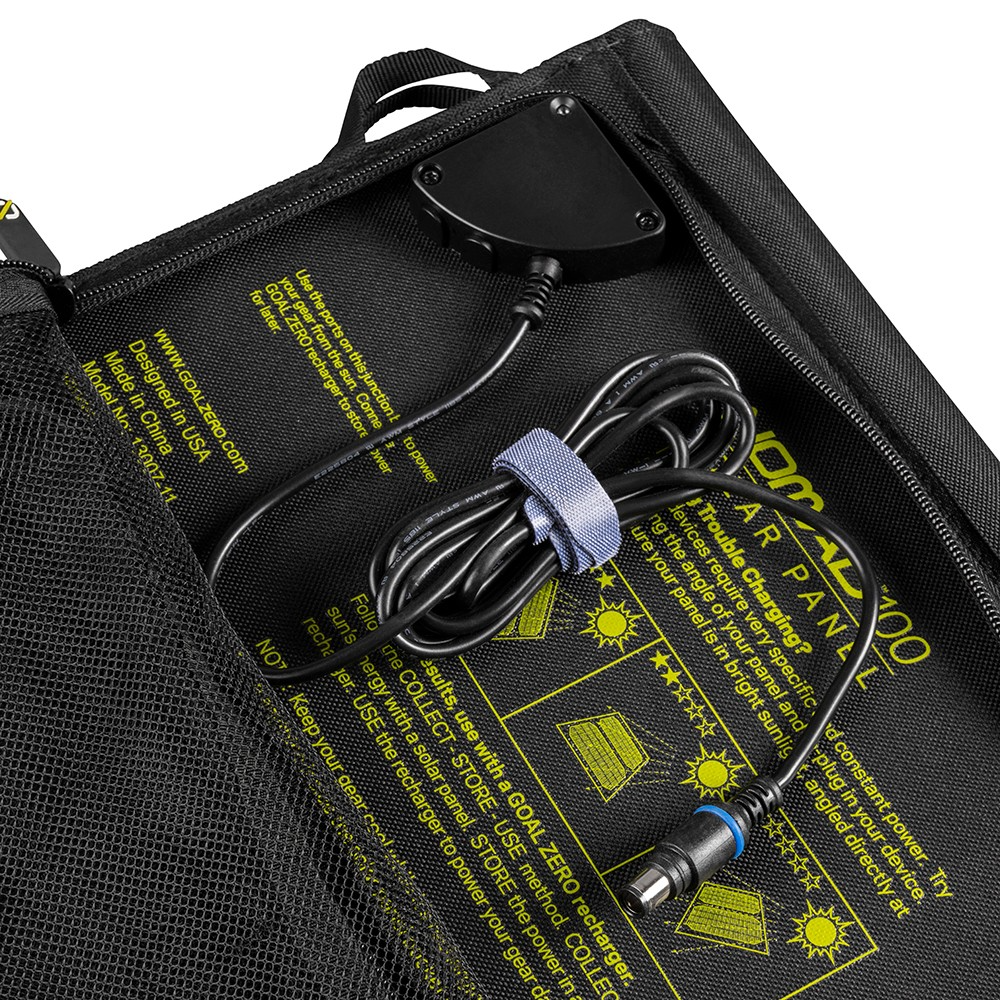

Solar port: blue 8mm male, 14–22V, up to 5.56A The receiving equipment must accept the listed electrical range and connection; matching a plug alone is not enough.
Weight: 10.2lb. (4.6kg) Check the available space and how the item will be moved or mounted in the intended setup.
Allow for the conditions at the site.
A solar rating is not a fixed output throughout the day. Weather, shading, angle and temperature affect production. Match the panel to a suitable controller or receiving solar input before connecting it.
Specifications and selected configuration
- Rated solar output: 100W
- Solar port: blue 8mm male, 14–22V, up to 5.56A
- Open-circuit voltage: 21.5V
- Weight: 10.2lb. (4.6kg)
- Unfolded dimensions: 20.5×59.5×1 inches

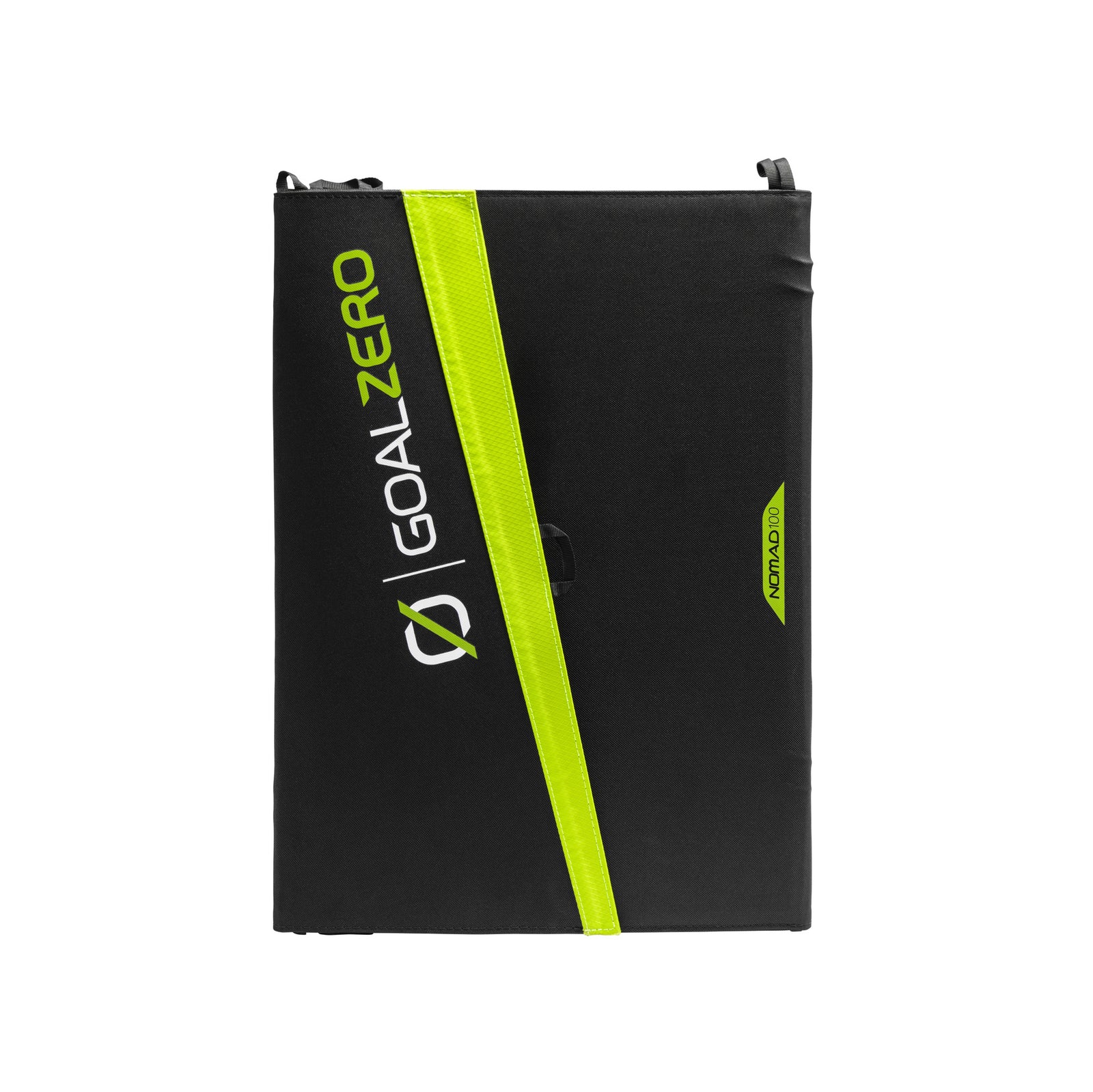

- Folded dimensions: 20.5×15.5×2 inches
- The panel produces electricity in sunlight and does not store energy
Before you choose
Will it produce the rated output all day?
No fixed daily output is promised. Weather, shading, angle and temperature affect solar production.
Is the connector the only compatibility check?
No. Check the receiving equipment’s voltage, current and power requirements as well as the connector.
