Description

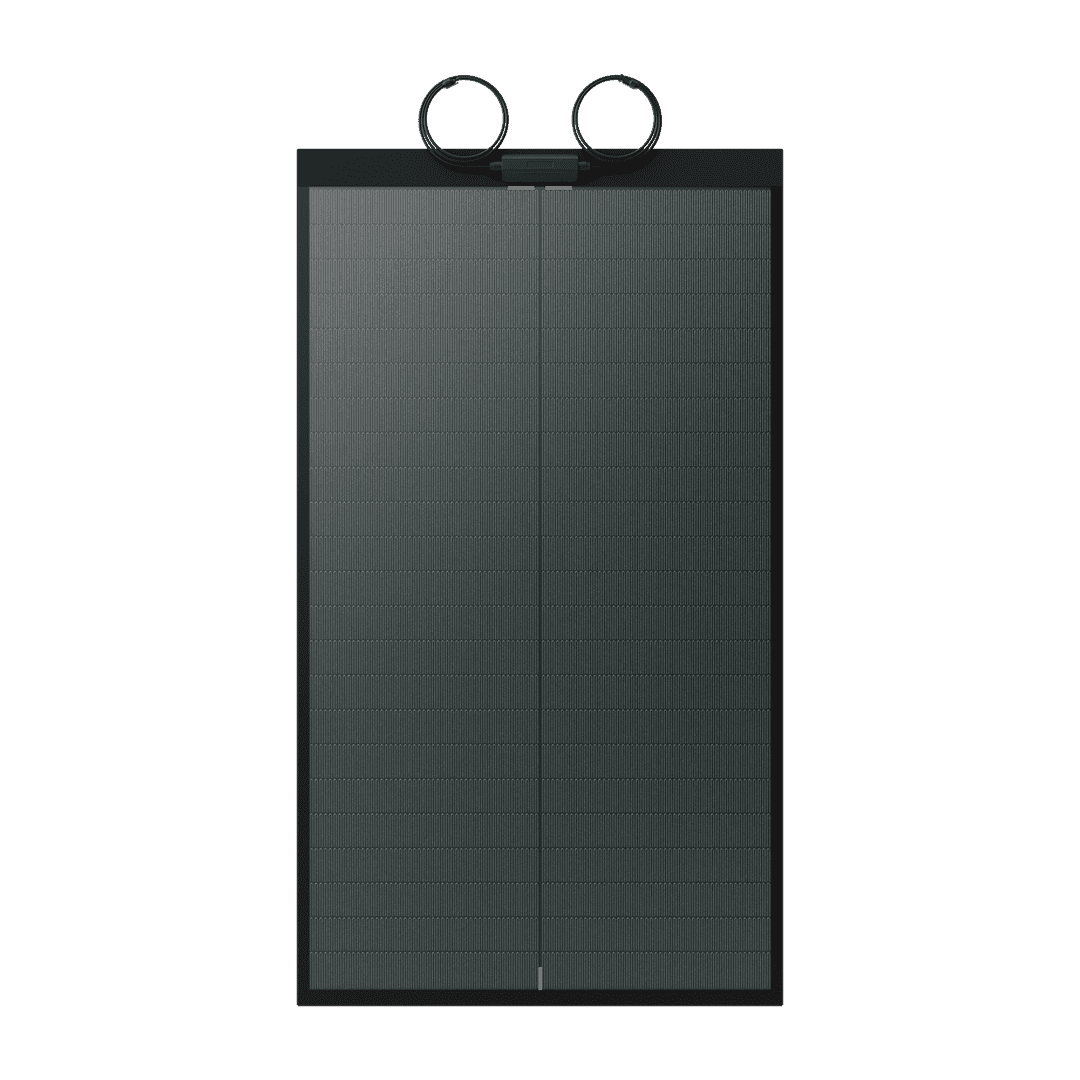

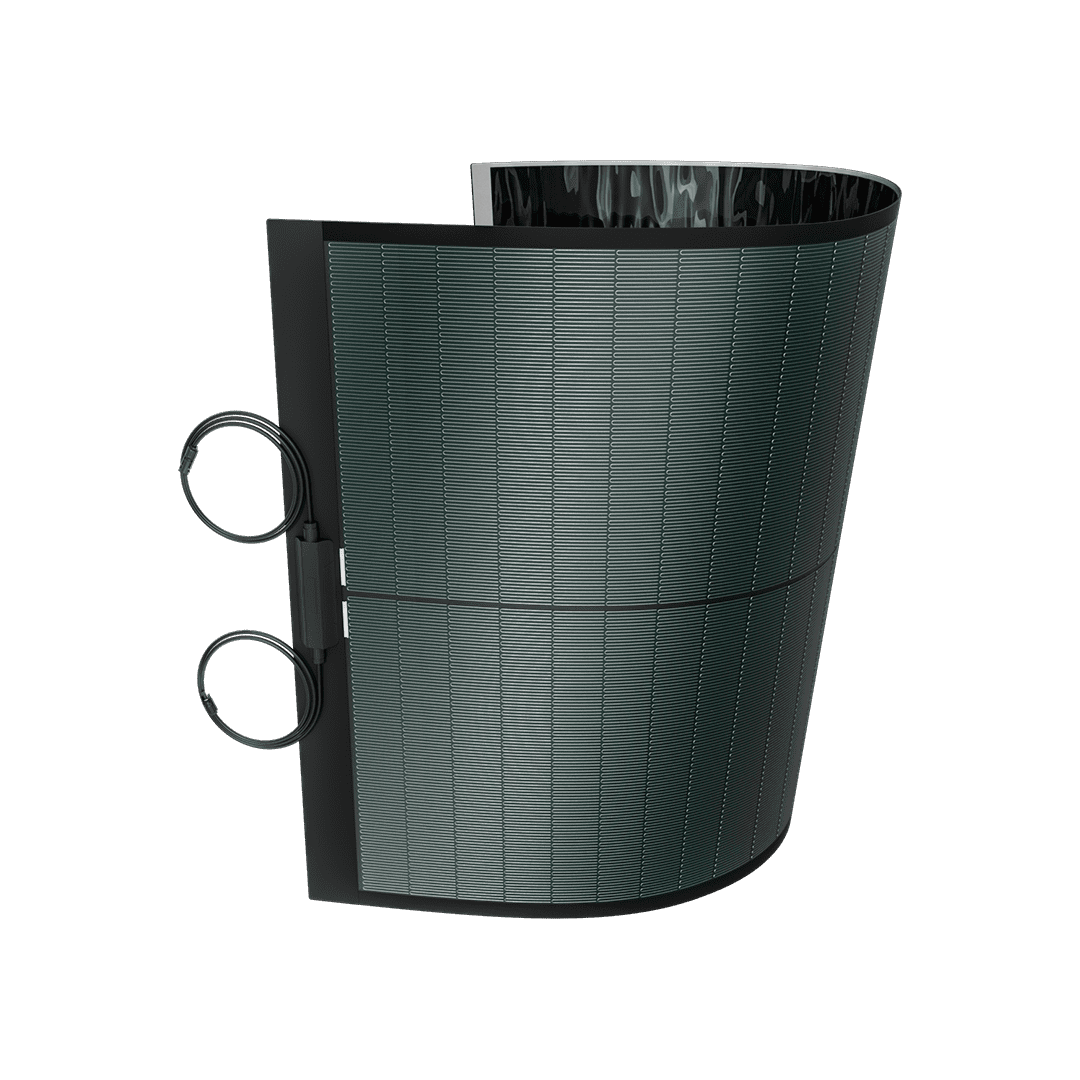

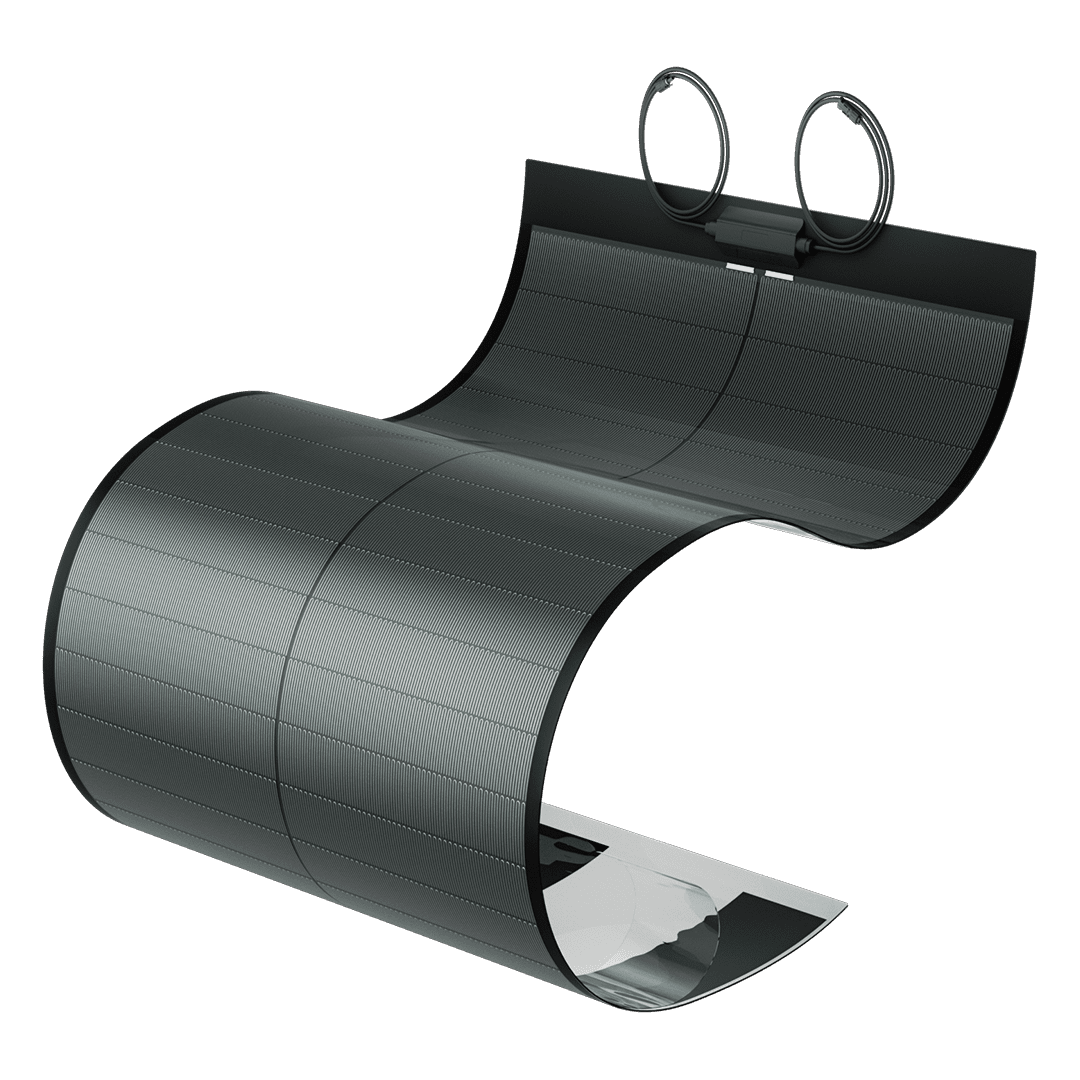

BougeRV Yuma 100W CIGS Flexible Solar Panel with Tape — Compact, 1 Panel
A compact CIGS panel with adhesive backing.
This selected BougeRV Yuma ISE160 package is one compact 100W panel with pre-assembled adhesive backing.
Choose the panel to fit the installation and the receiving equipment. The panel format, mounting method and electrical input requirements all affect the setup.
Match the panel to its destination.
Selected package: one panel Use this selected component list when planning the rest of the setup.
Rated maximum power: 100W, ±5% Solar output changes with weather, shading, angle and temperature rather than remaining at the rated figure throughout the day.
Maximum-power voltage: 24V, ±5% The receiving equipment must accept the listed electrical range and connection; matching a plug alone is not enough.
Allow for the conditions at the site.
A solar rating is not a fixed output throughout the day. Weather, shading, angle and temperature affect production. Match the panel to a suitable controller or receiving solar input before connecting it.
Specifications and selected configuration
- Selected package: one panel
- Manufacturer model/SKU: ISE160
- Rated maximum power: 100W, ±5%
- Maximum-power voltage: 24V, ±5%
- Maximum-power current: 4.21A, ±5%
- Open-circuit voltage: 30.5V, ±5%

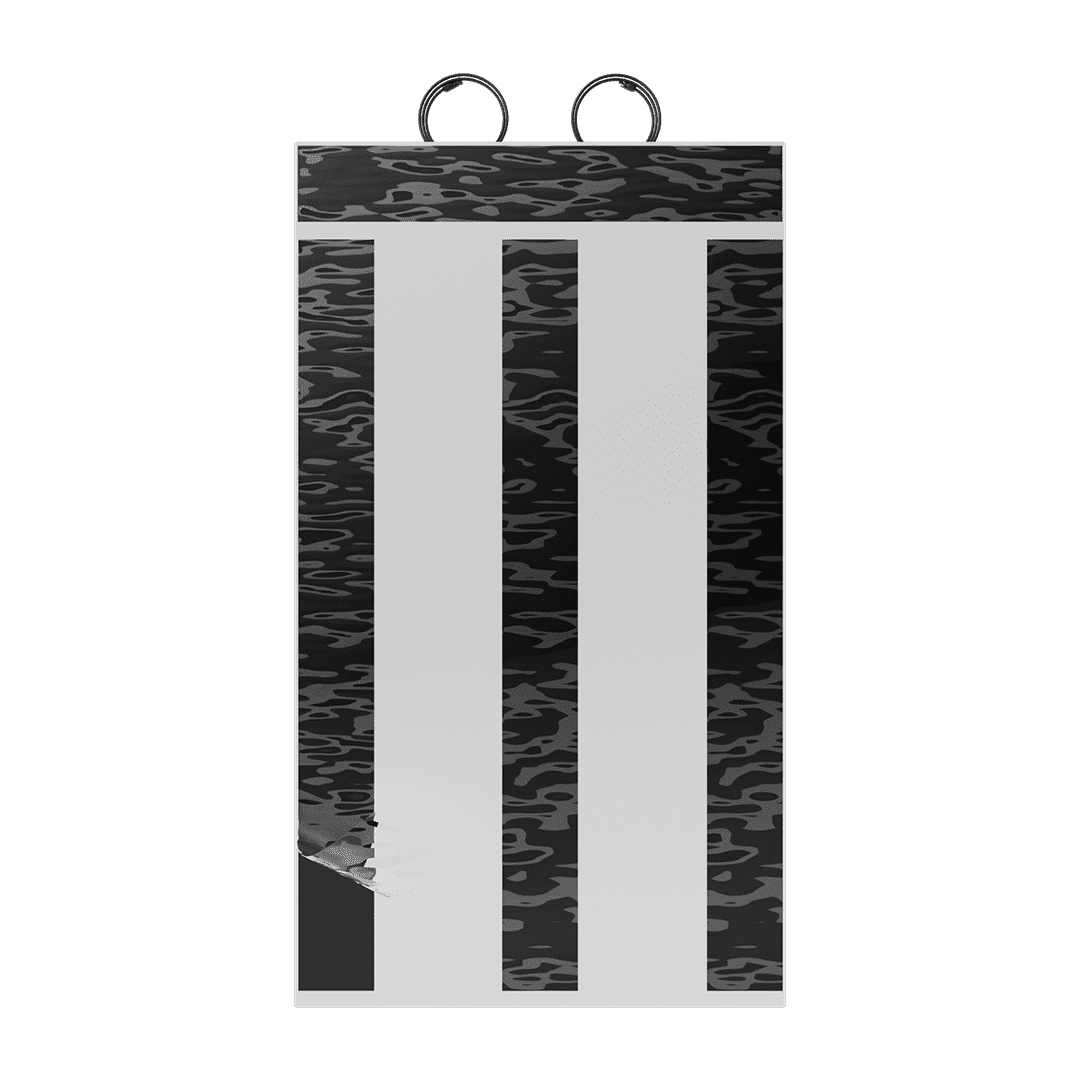

- CIGS thin-film cells and pre-assembled adhesive backing
Check mounting suitability, connectors and charging-system input limits before installation. Battery, charge controller and power station are not included. Output varies with sunlight, shading, temperature and installation.
Before you choose
What selected configuration or accessory condition should I check?
Selected package: one panel
Will it produce the rated output all day?
No fixed daily output is promised. Weather, shading, angle and temperature affect solar production.
Is the connector the only compatibility check?
No. Check the receiving equipment’s voltage, current and power requirements as well as the connector.
