Description
Dual-fuel · G0089470
G0089470: 3900 running watts. Two fuel choices.

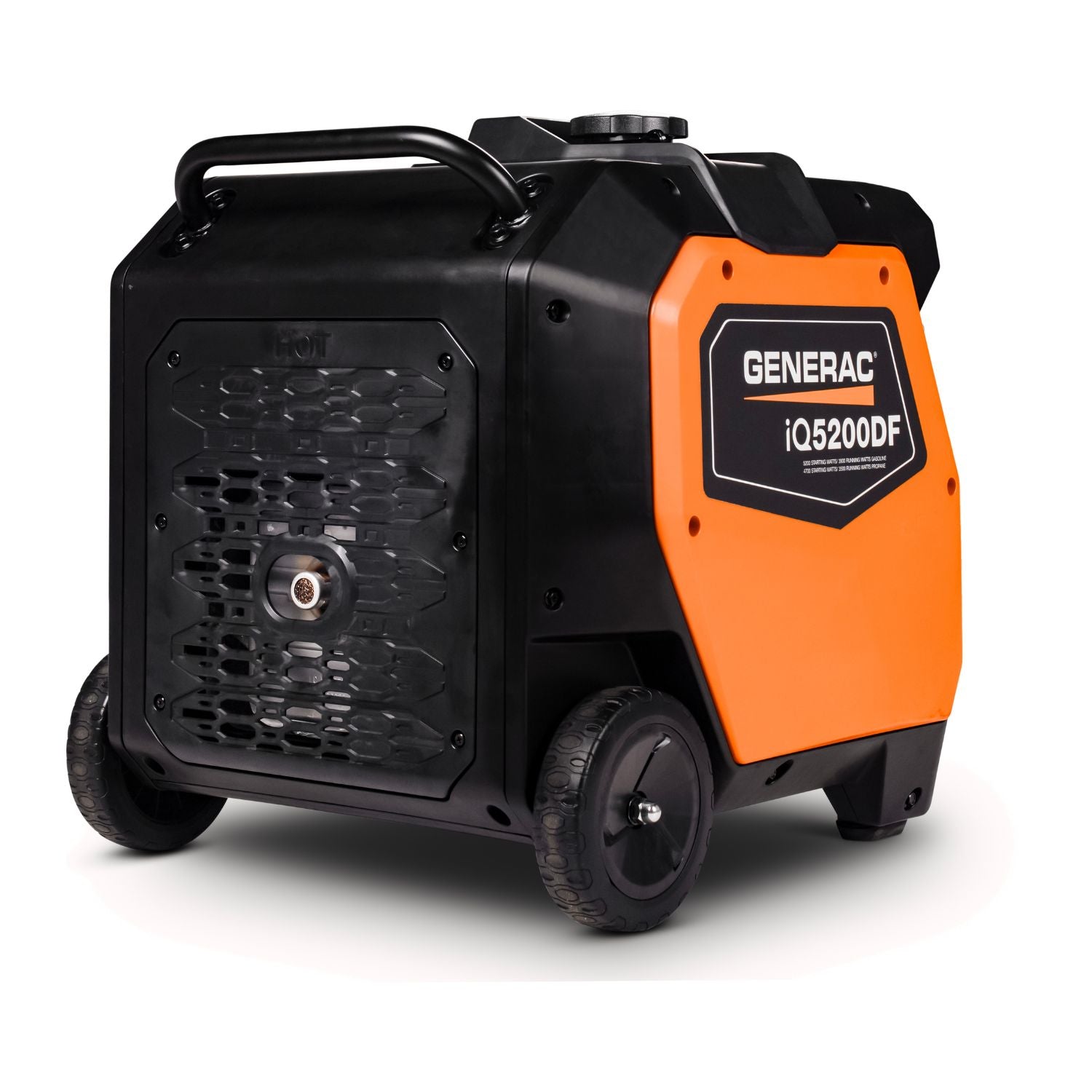

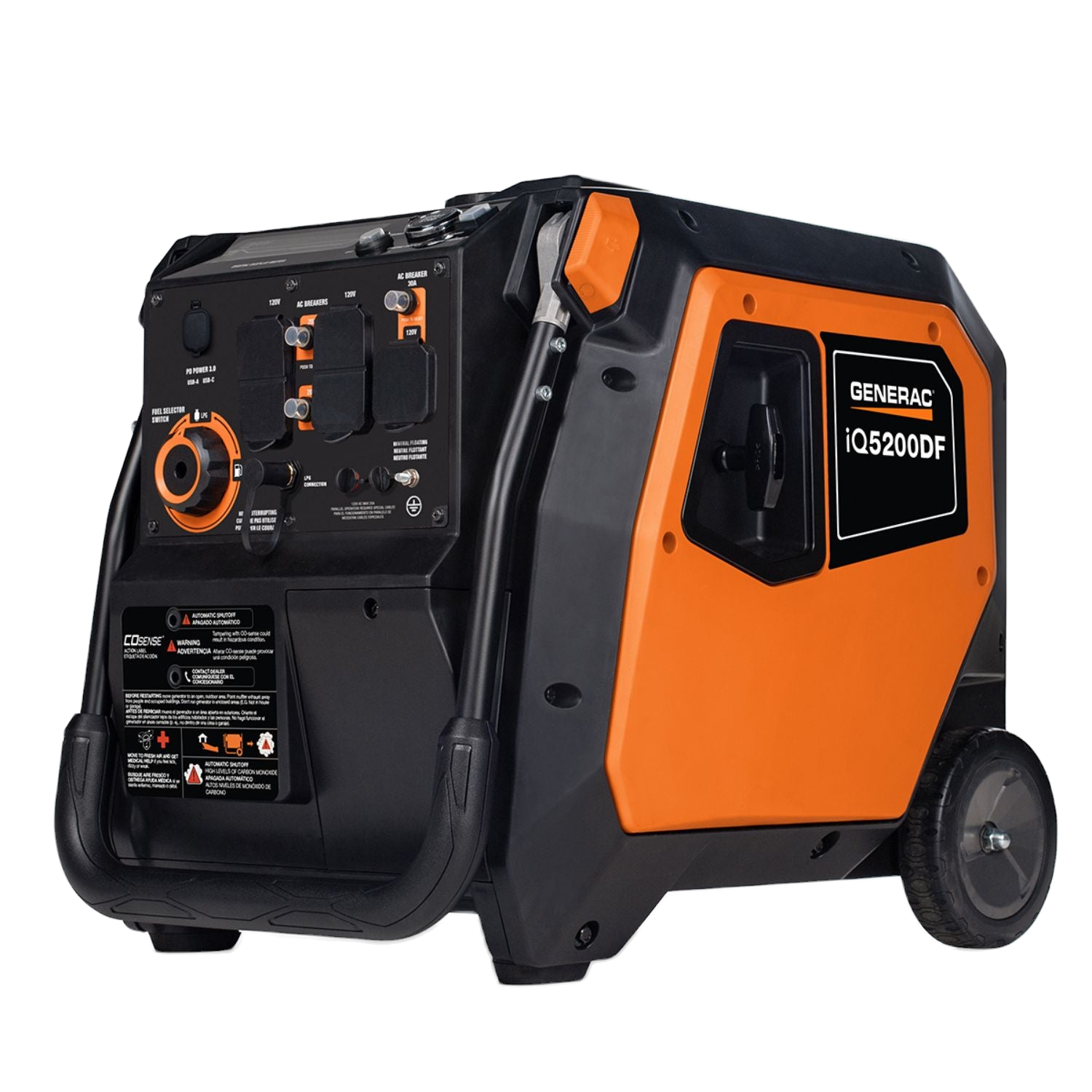

Generac iQ5200 Dual-Fuel Inverter Generator pairs 3900W of gasoline running output with gasoline and propane operation. Build an outdoor equipment setup with a measured load budget, then size your connections around the exact fuel-specific ratings below.
Gasoline running output
Rated AC voltage
Fuel options
Choose your fuel. Keep the load calculation precise.
The G0089470 lets you choose gasoline or propane without treating them as identical power sources. Gasoline running output is 3900W; check the propane running rating in the specifications when calculating a propane-powered load.
The listed starting rating is 5200W (Gasoline) | 4700W (LP). Starting output covers brief startup demand; it is not the amount available continuously. Allow for equipment starting requirements as well as the combined running load.
Match the load. Choose the connection.
Running output and startup demand are different requirements. Add together the loads you plan to use simultaneously, then compare the applicable fuel-specific ratings. Runtime changes with load, fuel and conditions.
Keep this fuel-powered generator outdoors, away from doors, windows and vents. Connecting it to building wiring requires appropriate transfer equipment and qualified installation. A carbon monoxide sensor does not make indoor use safe.
Check your connections before you connect.

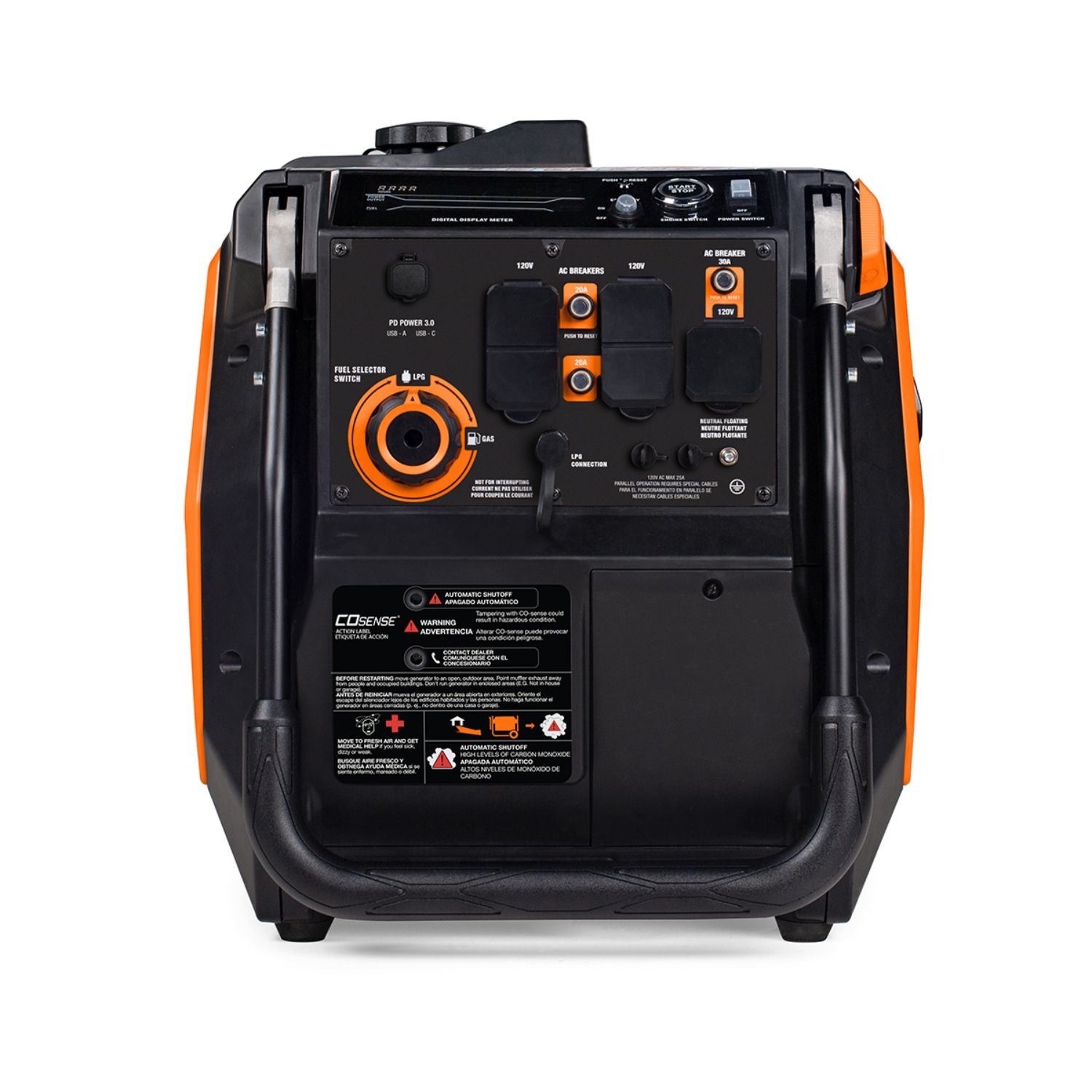

Review the connector details in the exact-model specifications below before selecting cables or transfer equipment.
The selected equipment package.
1 x Generac iQ5200 Dual Fuel 3900W/5200W Portable Inverter Generator 1 x Engine Oil 1 x Oil Funnel 1 x Battery (for electric start) 1 x Tool Kit 1 x Propane Hose w/Regulator 1 x Owner's Manual
Exact-model specifications.
- Product Series
- iQ5200DF
- Model Number (Configuration)
- G0089470 — 50-State
- CARB Approved
- G0089470 (iQ5200 50ST) Only
- AC Rated Output – Running Watts
- 3900W (Gasoline) | 3500W (LP)
- AC Maximum Output – Starting Watts
- 5200W (Gasoline) | 4700W (LP)
- Rated AC Voltage
- 120 VAC
- Rated AC Frequency
- 60 Hz
- Rated 120 VAC Amperage
- 32.5A (Gas) | 29.2A (LP)
- Engine Displacement
- 223cc
- Engine Type
- OHV
- Engine RPM
- Variable
- Recommended Oil
- 10W-30 | SAE 30
- Oil Capacity
- 0.6 qt | 0.6 L
- Lubrication Method
- Splash
- Total Harmonic Distortion
- < 3% (Safe for Sensitive Electronics)
- Choke Location
- Auto-Choke
- Fuel Selection
- On Control Panel
- Starting Method
- Electric Start | Recoil Pull Start
- Battery Included
- Yes
- Battery Type
- Lead Acid (12V DC, 6 Ah)
- Battery Part Number
- 10000038386
- Battery Dimensions
- 4.5” x 2.8” x 5.2”
- Low Oil Shutdown
- Yes
- Neutral Bonded to Ground
- Yes
- Start Switch Type
- Push Button
- Start Switch Location
- On Control Panel
- Fuel Tank Capacity
- 3.2 gal | 12 L
- Run Time @ 50% Load
- 9 hrs (Gasoline) | 11 hrs (20lb LP Tank)
- Run Time @ 25% Load
- 15 hrs (Gasoline) | 20 hrs (20lb LP Tank)
- Included Accessories
- Engine oil, oil funnel, battery, tool kit, manual, LP hose
- Economy Mode
- Yes
Before you choose.
Will it run my equipment?
Compare the combined running and startup requirements, voltage and connectors with this exact configuration. Do not treat peak output as continuous output.
Does this replace a professionally installed system?
Keep this fuel-powered generator outdoors, away from doors, windows and vents. Connecting it to building wiring requires appropriate transfer equipment and qualified installation. A carbon monoxide sensor does not make indoor use safe.
Which configuration am I ordering?
G0089470. 50 States | Available In California. Match the model and listed package contents before ordering.
