Description
Tri-fuel · G0080610
G0080610: 9500 running watts. Three fuel choices.

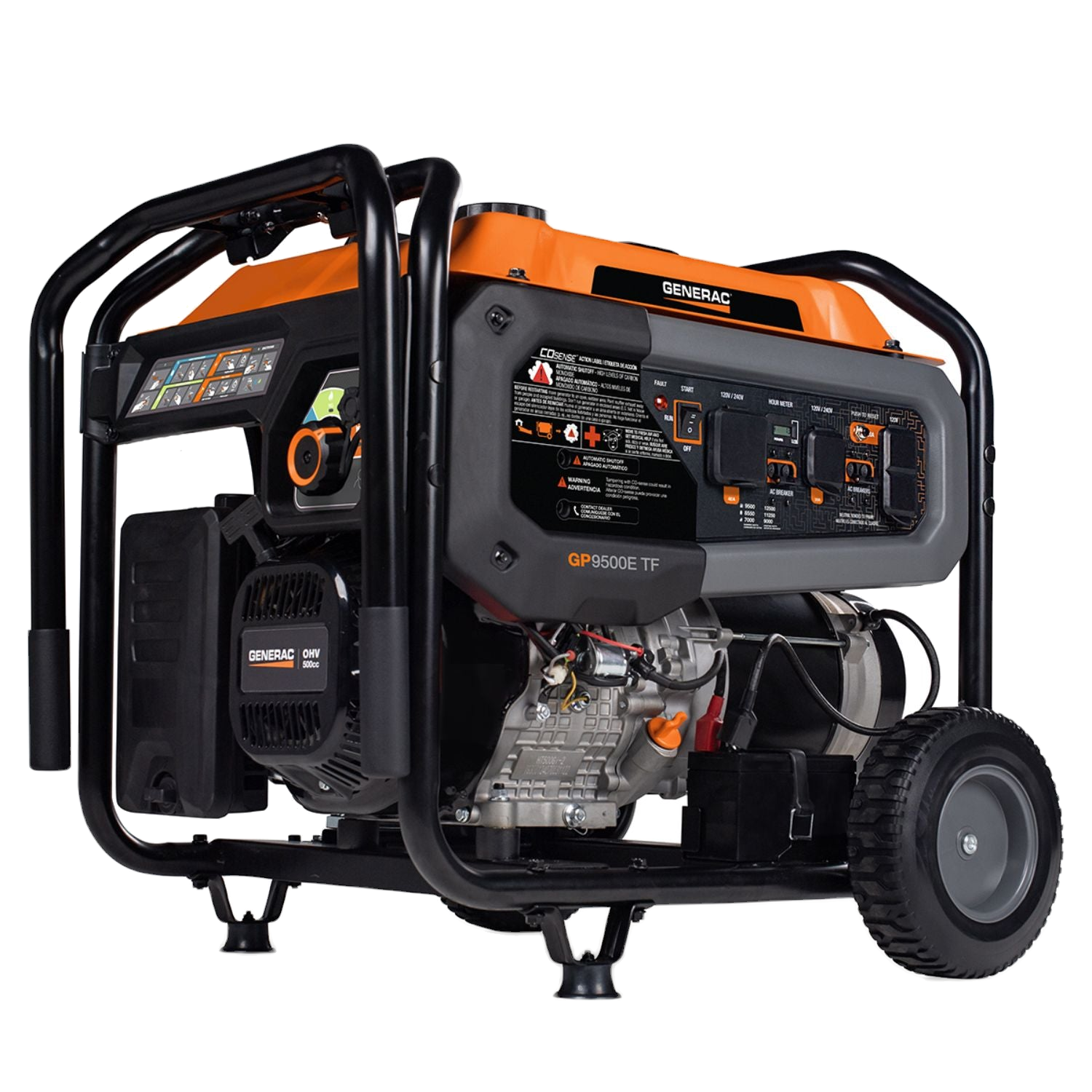

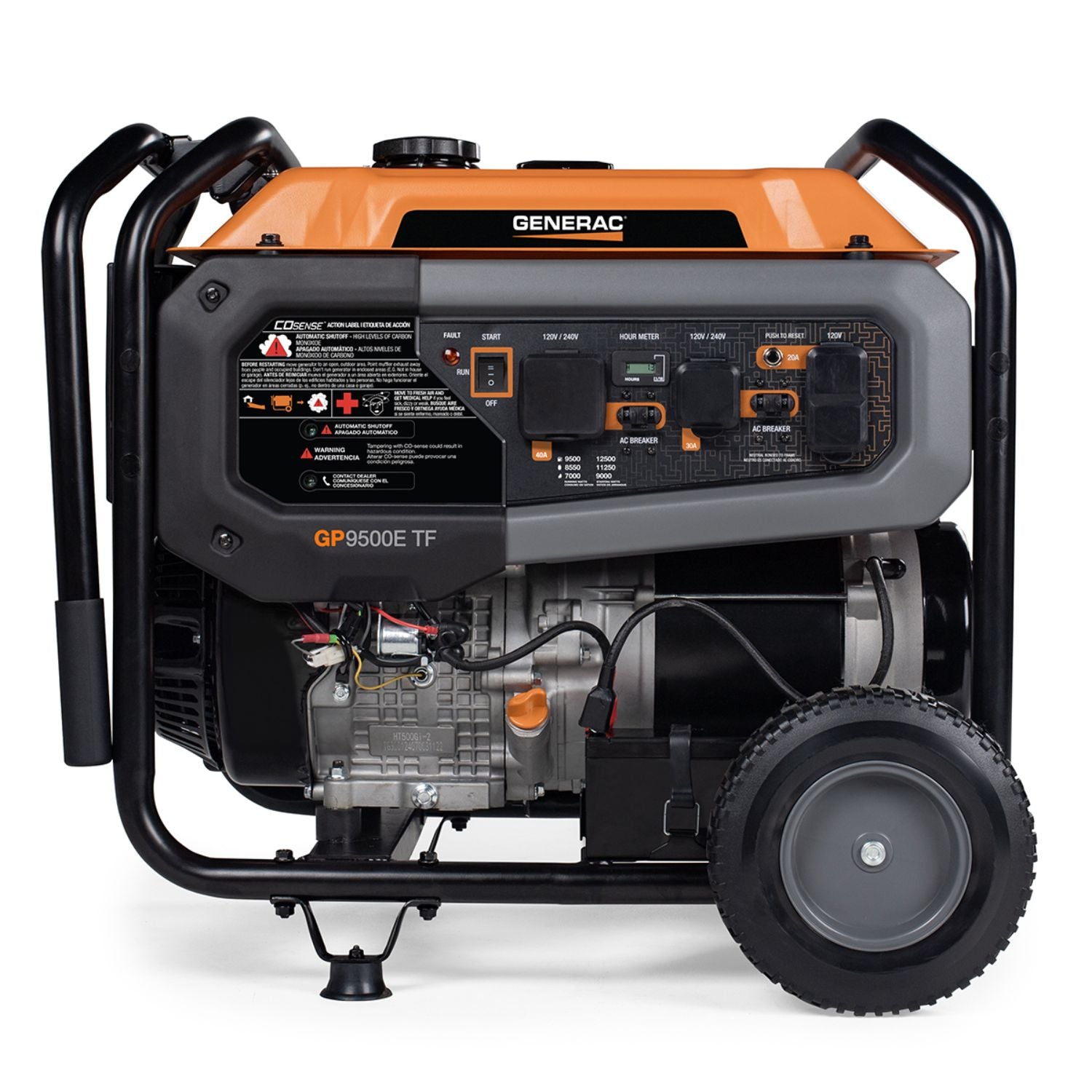

Generac GP9500E Tri-Fuel Generator pairs 9500W of gasoline running output with gasoline, propane and natural gas operation. Build a larger selected-load backup plan, then size your connections around the exact fuel-specific ratings below.
Gasoline running output
Rated AC voltage
Fuel options
A third fuel option, with its own output rating.
The G0080610 adds natural gas to gasoline and propane operation. That gives a correctly installed setup another fuel supply option; it does not make the ratings interchangeable. Natural-gas output and the required supply connection must be checked separately before installation.
The listed starting rating is 12500 / 11250 / 9000. Starting output covers brief startup demand; it is not the amount available continuously. Allow for equipment starting requirements as well as the combined running load.
Match the load. Choose the connection.
Running output and startup demand are different requirements. Add together the loads you plan to use simultaneously, then compare the applicable fuel-specific ratings. Runtime changes with load, fuel and conditions.
Keep this fuel-powered generator outdoors, away from doors, windows and vents. Connecting it to building wiring requires appropriate transfer equipment and qualified installation. A carbon monoxide sensor does not make indoor use safe.
Check your connections before you connect.
Review the connector details in the exact-model specifications below before selecting cables or transfer equipment.
The selected equipment package.
1 x Generac GP9500E Tri Fuel Portable Generator 50ST 1 x Engine Oil 1 x Handle & Wheel Kit 1 x Battery 1 x LP Hose with Primary Regulator to connect 20lb LP Tank 1 x Owner's Manual
Exact-model specifications.
- Product Series
- GP9500E TF
- Model Number
- G0080610
- Configuration
- 50-State
- Running Watts (Gas / LP / NG)
- 9500 / 8550 / 7000
- Starting Watts (Gas / LP / NG)
- 12500 / 11250 / 9000
- Rated AC Voltage
- 120/240 VAC
- Rated AC Frequency
- 60 Hz
- Rated 120/240 VAC Amperage
- 79.2 / 39.6 (Gas)
- Engine Displacement
- 500cc
- Engine Type
- OHV
- Engine RPM
- 3600
- Recommended Oil
- 10W-30 / SAE 30
- Oil Capacity (qt / L)
- 1.06 qt (1.0 L)
- Lubrication Method
- Splash
- Automatic Voltage Regulation (AVR)
- Yes
- Choke Location
- On Engine
- Fuel Shut Off
- On Fuel Tank
- Starting Method
- Electric Start / Recoil Pull Start
- Battery Included
- Yes
- Battery Type
- Lead Acid (12V DC, 9Ah)
- Battery Part No.
- A0006353770
- Battery Dimensions (in.)
- 5.94″ × 2.56″ × 3.70″
- Low Oil Shutdown
- Yes
- Neutral Bonded to Ground
- Yes
- Start Switch Type
- Off / Run / Start
- Start Switch Location
- On Control Panel
- Fuel Gauge
- Yes
- Fuel Tank Capacity (gal / L)
- 7.5 gal / 28.4 L
- Run Time at 25% Load (hrs)
- 14 (Gas) / 6 (LP 20lb Tank)
- Run Time at 50% Load (hrs)
- 9.5 (Gas) / 4.5 (LP 20lb Tank)
- Handle Style
- Dual Grip, Single Folding with Lock Pin
- Wheel Type
- 9.5″ Never Flat
- Included
- Engine oil, handle & wheel kit, battery, owner’s manual, LP hose with regulator for 20lb tank
- Length
- 27.5 in / 698 mm
- Width
- 27.1 in / 688 mm
- Height
- 27.6 in / 703 mm
- Extended Length
- 44.9 in / 1141 mm
- Carton Length
- 28.5 in / 725 mm
- Carton Width
- 21.7 in / 550 mm
- Carton Height
- 29.1 in / 740 mm
- Unit Weight
- 219 lbs / 99.3 kg
Before you choose.
Will it run my equipment?
Compare the combined running and startup requirements, voltage and connectors with this exact configuration. Do not treat peak output as continuous output.
Does this replace a professionally installed system?
Keep this fuel-powered generator outdoors, away from doors, windows and vents. Connecting it to building wiring requires appropriate transfer equipment and qualified installation. A carbon monoxide sensor does not make indoor use safe.
Which configuration am I ordering?
G0080610. Standalone generator configuration. Match the model and listed package contents before ordering.
