Description
Dual-fuel · XP28000iH
XP28000iH: 22,000 running watts. Two fuel choices.

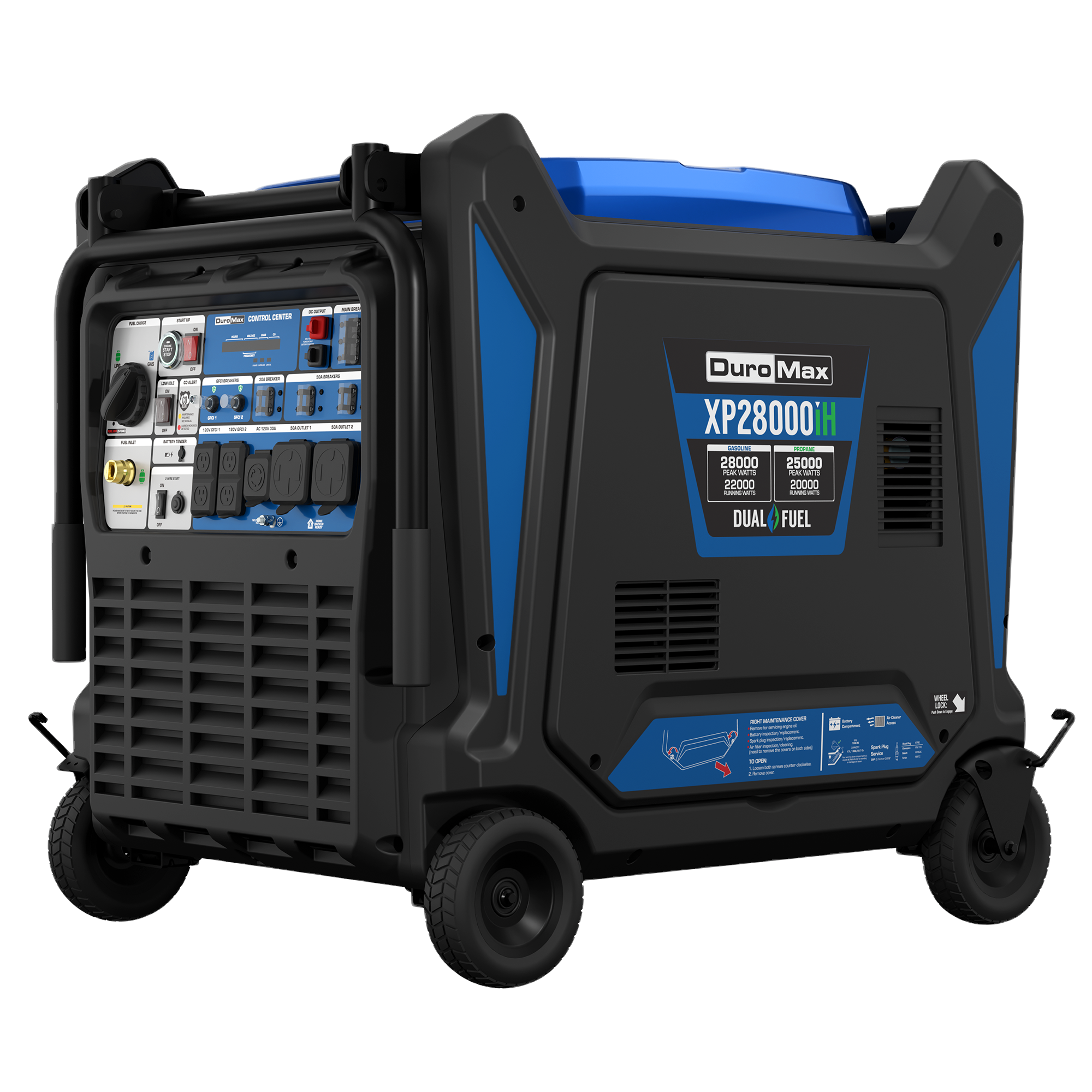

DuroMax XP28000iH Dual-Fuel Inverter Generator pairs 22,000W of gasoline running output with gasoline and propane operation. Build a high-demand, professionally planned backup configuration, then size your connections around the exact fuel-specific ratings below.
Gasoline running output
Rated AC voltage
Fuel options
Choose your fuel. Keep the load calculation precise.
The XP28000iH lets you choose gasoline or propane without treating them as identical power sources. Gasoline running output is 22,000W; check the propane running rating in the specifications when calculating a propane-powered load.
The listed starting rating is 28,000. Starting output covers brief startup demand; it is not the amount available continuously. Allow for equipment starting requirements as well as the combined running load.
Match the load. Choose the connection.
Running output and startup demand are different requirements. Add together the loads you plan to use simultaneously, then compare the applicable fuel-specific ratings. Runtime changes with load, fuel and conditions.
Keep this fuel-powered generator outdoors, away from doors, windows and vents. Connecting it to building wiring requires appropriate transfer equipment and qualified installation. A carbon monoxide sensor does not make indoor use safe.
Check your connections before you connect.
- GFCI Outlets
- Yes
- 5-20R
- 4
- L14-30R
- 1
- 14-50R
- 2
The selected equipment package.
The order includes the generator and the accessories explicitly listed below. Propane tanks, vehicles, buildings and other staging props shown in lifestyle photos are not included.
XP28000iH Generator, Propane Hose and Regulator, Oil Funnel, Spark Plug Wrench, Remote Control, Battery Tender, DC Cables, Tool Set, and Owner's Manual
Exact-model specifications.
- Gasoline — Peak Wattage
- 28,000
- Gasoline — Running Wattage
- 22,000
- Gasoline — Running Amperage at 120V
- 183.3 Amps
- Gasoline — Running Amperage at 240V
- 91.66 Amps
- Gasoline — Runtime at 25% Load
- 16 hrs
- Gasoline — Runtime at 50% Load
- 9 hrs
- Propane — Peak Wattage
- 25,000
- Propane — Running Wattage
- 20,000
- Propane — Running Amperage at 120V
- 166.67 Amps
- Propane — Running Amperage at 240V
- 83.3 Amps
- Propane — Runtime at 25% load on 40/60/100 lb Tank
- 12 / 18 / 30 hrs
- Propane — Runtime at 50% load on 40/60/100 lb Tank
- 6.67 / 10 / 16.66 hrs
- Engine Manufacturer
- DuroMax Power Equipment
- Engine Type
- 4-Stroke
- Valve Type
- OHV
- Engine Cooling Type
- Forced Air
- Engine Size
- 999cc
- Engine Speed
- Variable Speed (Dependent on load)
- Starting Type
- Push Button
- Electric Start
- Yes
- Recoil Start
- No
- Remote Start
- Yes
- Idle Control
- Demand Based Variable Idle
- Fuel Delivery System
- Carburetor
- Fuel Types
- Gasoline and Propane
- Oil Cooling Type
- Pressure and Splash
- Recommended Oil
- 10W-30
- Recommended Oil Types
- Blended, Conventional, or Synthetic
- Oil Capacity
- 84.5 fl. oz. (2.5 L)
- Automatic Low Oil Shutdown
- Yes
- Cast Iron Sleeve
- Yes
- Bearing Type
- 6003 Bearing
- CO Sensor Shutdown
- Yes
- EPA Certified
- Yes
- CARB Certified
- No
- 50 State Compliant
- No
- GFCI Outlets
- Yes
- Battery Switch
- Yes
- Battery Tender Port
- Yes
- Battery Tender
- Yes
- Volt Meter
- Digital
- Hour Meter
- Yes
- 5-20R
- 4
- L14-30R
- 1
- 14-50R
- 2
- Manufacturer
- DuroMax Power Equipment
- Part #
- XP28000iH
- AC Rated Voltage
- 120/240V
- AC Rated Frequency
- 60 Hz
- Total Harmonic Distortion (THD)
- <3%
- AC Phase
- Single
- Engine Type
- 4-Stroke
- Engine Displacement
- 999 cc
- Valve Type
- OHV
- Bore
- 90 mm
- Stroke
- 78.5 mm
- Fuel Delivery System
- Carburetor
- Gasoline Capacity
- 12.7 US gal.
- Recommended Oil
- 10W-30
- Oil Capacity
- 84.5 fl. oz. (2.5 L)
- Oil Cooling Type
- Pressure and splash
- Bearing Type
- 6003 Sliding bearing
- Cylinder Sleeve
- Cast iron sleeve
- Engine Cooling Type
- Forced air
- Starting Type
- Electric
- Noise Level
- 70 dB @ 25% load
- Neutral System
- Bonded
- Winding Material
- 100% copper windings
- Suggested Propane Tank Size
- 100 lbs. minimum
- Dimensions
- 39.25"L x 31"W x 34.5"H
- Weight
- 466 lbs
- What's in the Box?
- XP28000iH Generator, Propane Hose and Regulator, Oil Funnel, Spark Plug Wrench, Remote Control, Battery Tender, DC Cables, Tool Set, and Owner's Manual
Before you choose.
Will it run my equipment?
Compare the combined running and startup requirements, voltage and connectors with this exact configuration. Do not treat peak output as continuous output.
Does this replace a professionally installed system?
Keep this fuel-powered generator outdoors, away from doors, windows and vents. Connecting it to building wiring requires appropriate transfer equipment and qualified installation. A carbon monoxide sensor does not make indoor use safe.
Which configuration am I ordering?
XP28000iH. Standalone generator configuration. Match the model and listed package contents before ordering.
