Description
Tri-fuel · XP17500HXT
XP17500HXT: 13,750 running watts. Three fuel choices.

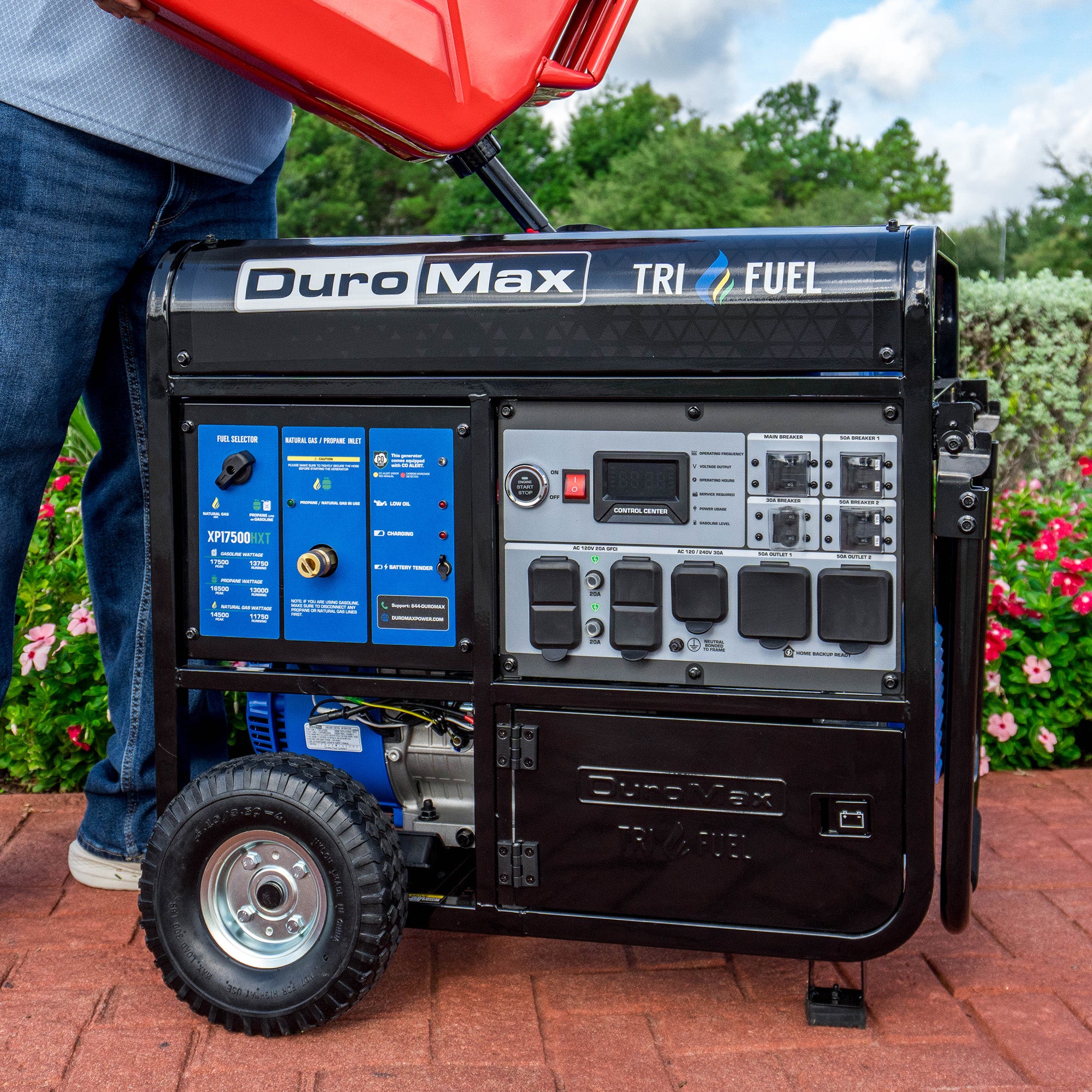

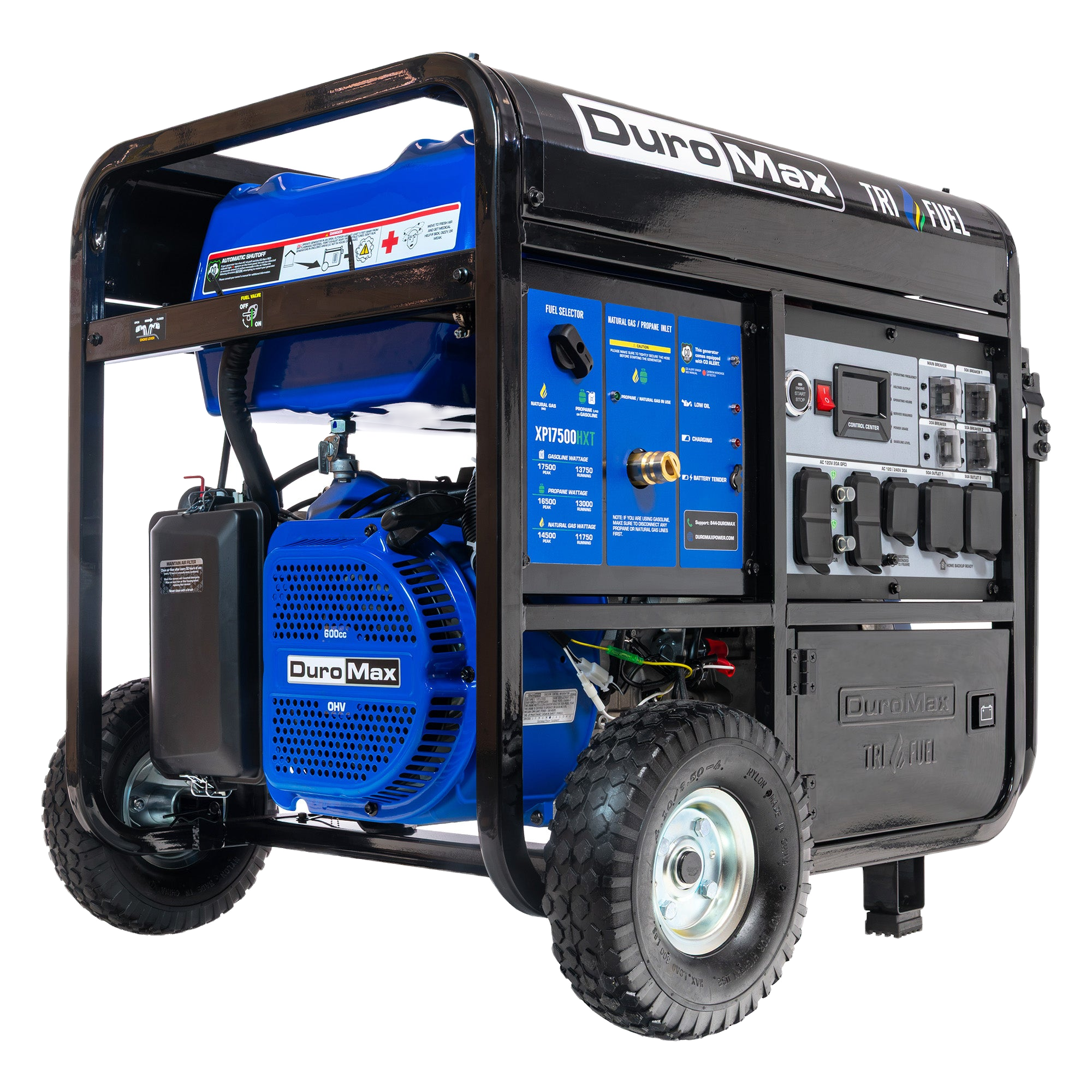

DuroMax XP17500HXT Tri-Fuel Generator pairs 13,750W of gasoline running output with gasoline, propane, and natural gas operation. Build a high-demand, professionally planned backup configuration, then size your connections around the exact fuel-specific ratings below.
Gasoline running output
Rated AC voltage
Fuel options
A third fuel option, with its own output rating.
The XP17500HXT adds natural gas to gasoline and propane operation. That gives a correctly installed setup another fuel supply option; it does not make the ratings interchangeable. Natural-gas output and the required supply connection must be checked separately before installation.
The listed starting rating is 17,500 W. Starting output covers brief startup demand; it is not the amount available continuously. Allow for equipment starting requirements as well as the combined running load.
Match the load. Choose the connection.
Running output and startup demand are different requirements. Add together the loads you plan to use simultaneously, then compare the applicable fuel-specific ratings. Runtime changes with load, fuel and conditions.
Keep this fuel-powered generator outdoors, away from doors, windows and vents. Connecting it to building wiring requires appropriate transfer equipment and qualified installation. A carbon monoxide sensor does not make indoor use safe.
Check your connections before you connect.
- GFCI Outlets
- Yes
- 5-20R
- 4
- L14-30R
- 1
- 14-50R
- 2
- GFCI Outlets
- Yes
The selected equipment package.
The order includes the generator and the accessories explicitly listed below. Propane tanks, vehicles, buildings and other staging props shown in lifestyle photos are not included.
XP17500HXT Generator, Oil Funnel, Spark Plug Wrench, Tool Set, Remote Control, Battery Tender Cord, Propane Regulator, Natural Gas Hose Kit with Quick Connect, Wheel Kit, and Owner's Manual
Exact-model specifications.
- Gasoline — Peak Wattage
- 17,500 W
- Gasoline — Running Wattage
- 13,750 W
- Gasoline — Running Amperage at 120V
- 114.6 A
- Gasoline — Running Amperage at 240V
- 57.3 A
- Gasoline — Runtime at 25% Load
- 15 Hrs.
- Gasoline — Runtime at 50% Load
- 10 Hrs.
- Propane — Peak Wattage
- 16,500 W
- Propane — Running Wattage
- 13,000 W
- Propane — Running Amperage at 120V
- 108.3 A
- Propane — Running Amperage at 240V
- 54.2 A
- Propane — Runtime at 25% Load (60 lbs. Tank)
- 24 Hrs.
- Propane — Runtime at 50% Load (60 lbs. Tank)
- 10.3 Hrs.
- Natural Gas — Peak Wattage
- 14,500 W
- Natural Gas — Running Wattage
- 11,750 W
- Natural Gas — Running Amperage at 120V
- 97.92 A
- Natural Gas — Running Amperage at 240V
- 48.96 A
- Natural Gas — Natural Gas fuel pressure requirements
- 6 to 9 inches of water column
- Natural Gas — Natural Gas BTU requirements at full load
- 300,000 BTU/hr
- Engine Manufacturer
- DuroMax Power Equipment
- Engine Type
- 4-Stroke
- Valve Type
- OHV
- Engine Cooling Type
- Forced Air
- Engine Size
- 600 cc
- Engine Speed
- 3600 RPM ±100 RPM
- Starting Type
- Electric/Recoil
- Electric Start
- Yes
- Recoil Start
- Yes
- Remote Start
- Yes
- Idle Control
- No
- Fuel Delivery System
- Carburetor
- Fuel Types
- Gasoline, Propane, and Natural Gas
- Oil Cooling Type
- Splash
- Recommended Oil
- 10W-30
- Recommended Oil Types
- Blended, Conventional, or Synthetic
- Oil Capacity
- 43.96 fluid oz (1.3L)
- Suggested Propane Tank Size
- 60 lbs. minimum
- Automatic Low Oil Shutdown
- Yes
- Cast Iron Sleeve
- Yes
- Bearing Type
- P53 Deep Groove Ball Bearing
- CO Sensor Shutdown
- Yes
- EPA Certified
- Yes
- 50 State Compliant
- No
- Non-California Emissions Compliant
- Not For Sale to California
- GFCI Outlets
- Yes
- Battery Switch
- Yes
- Volt Meter
- Digital
- Hour Meter
- Yes
- 5-20R
- 4
- L14-30R
- 1
- 14-50R
- 2
- Manufacturer
- DuroMax Power Equipment
- Part #
- XP17500HXT
- Voltage
- 120/240 V
- Frequency
- 60 Hz
- GFCI Outlets
- Yes
- Propane Hose & Regulator
- Included
- THD (Total Harmonic Distortion)
- <5%
- Winding Material
- 100% Copper Windings
- Battery Type
- 12 V AGM
- Battery Included
- Yes
- RV Ready
- Yes
- Fuel Tank Capacity Gasoline
- 11.9 Gallons
- Fuel Gauge
- Digital
- Product Dimensions
- 31" L × 28" W × 28.75" H
- Package Dimensions
- 35" L x 24" W x 27" H
- Product Dry Weight
- 269 lbs
- Package Weight
- 279.4 lbs
- Volume @ 50% Load (db)
- 77 dB
- UPC
- 811640017484

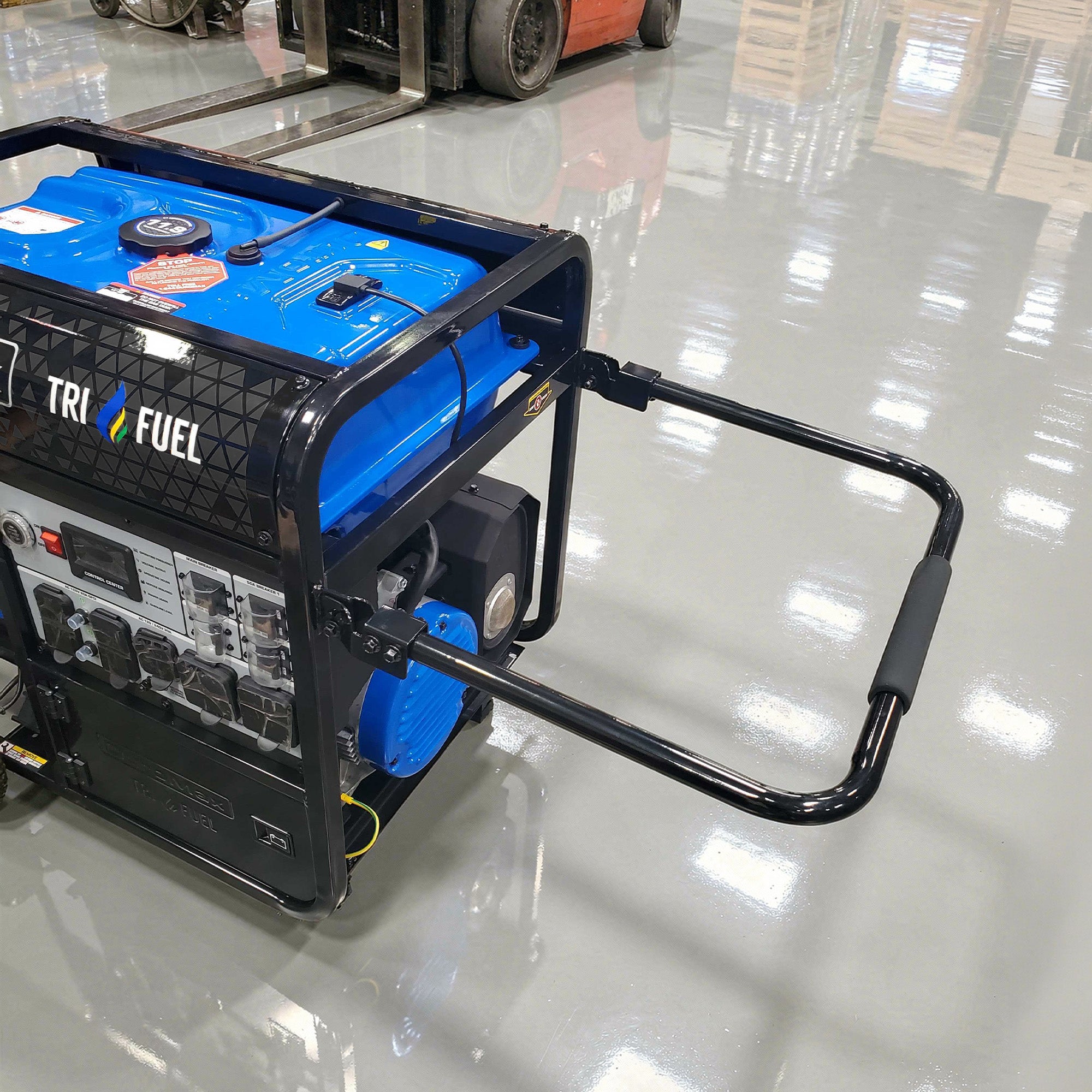

- Wheel & Handle Kit
- Included
- Wheel Type
- Metal Hub
- Wheel Diameter
- 10-Inches
- What's in the Box?
- XP17500HXT Generator, Oil Funnel, Spark Plug Wrench, Tool Set, Remote Control, Battery Tender Cord, Propane Regulator, Natural Gas Hose Kit with Quick Connect, Wheel Kit, and Owner's Manual
Before you choose.
Will it run my equipment?
Compare the combined running and startup requirements, voltage and connectors with this exact configuration. Do not treat peak output as continuous output.
Does this replace a professionally installed system?
Keep this fuel-powered generator outdoors, away from doors, windows and vents. Connecting it to building wiring requires appropriate transfer equipment and qualified installation. A carbon monoxide sensor does not make indoor use safe.
Which configuration am I ordering?
XP17500HXT. Standalone generator configuration. Match the model and listed package contents before ordering.
