Tri-fuel · XP16000iHT
XP16000iHT: 13,000 running watts. Three fuel choices.

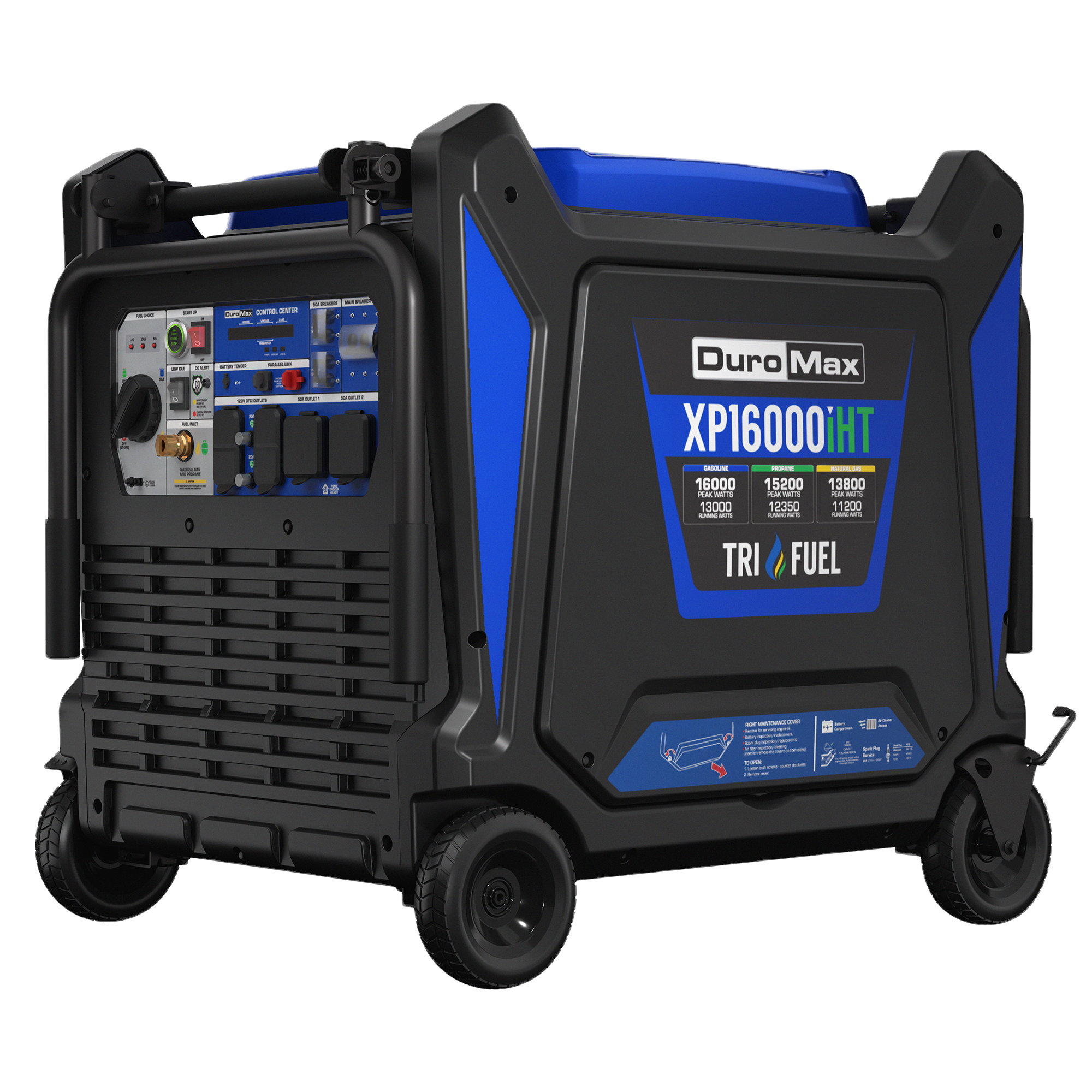

DuroMax XP16000iHT Tri-Fuel Inverter Generator pairs 13,000W of gasoline running output with gasoline, propane, and natural gas operation. Build a high-demand, professionally planned backup configuration, then size your connections around the exact fuel-specific ratings below.
Gasoline running output
Rated AC voltage
Fuel options
A third fuel option, with its own output rating.
The XP16000iHT adds natural gas to gasoline and propane operation. That gives a correctly installed setup another fuel supply option; it does not make the ratings interchangeable. Natural-gas output and the required supply connection must be checked separately before installation.
The listed starting rating is 16,000 Watts. Starting output covers brief startup demand; it is not the amount available continuously. Allow for equipment starting requirements as well as the combined running load.
Match the load. Choose the connection.
Running output and startup demand are different requirements. Add together the loads you plan to use simultaneously, then compare the applicable fuel-specific ratings. Runtime changes with load, fuel and conditions.
Keep this fuel-powered generator outdoors, away from doors, windows and vents. Connecting it to building wiring requires appropriate transfer equipment and qualified installation. A carbon monoxide sensor does not make indoor use safe.
Check your connections before you connect.
- GFCI Outlets
- Yes
- 5-20R
- 4
- 14-50R
- 2
- GFCI Outlets
- Yes
The selected equipment package.
The order includes the generator and the accessories explicitly listed below. Propane tanks, vehicles, buildings and other staging props shown in lifestyle photos are not included.
XP16000iHT Generator, Oil Funnel, Spark Plug Wrench, Tool Set, Remote Control, Battery Tender, Propane Regulator, 15-Foot x 3/4-Inch Natural Gas Hose, and Owner's Manual
Exact-model specifications.
- Gasoline — Peak Wattage
- 16,000 Watts
- Gasoline — Running Wattage
- 13,000 Watts
- Gasoline — Running Amperage at 120V
- 108.33 Amps
- Gasoline — Running Amperage at 240V
- 54.17 Amps
- Gasoline — Runtime at 25% Load
- 18.2 hrs
- Gasoline — Runtime at 50% Load
- 10.5 hrs
- Propane — Peak Wattage
- 15,200 Watts
- Propane — Running Wattage
- 12,350 Watts
- Propane — Running Amperage at 120V
- 102.92 Amps
- Propane — Running Amperage at 240V
- 51.46 Amps
- Propane — Runtime at 25% load on 40/60/100 lb Tank
- 11 / 16.5 / 27.75 hrs
- Propane — Runtime at 50% load on 40/60/100 lb Tank
- 6 / 9.4 / 14.5 hrs
- Natural Gas — Peak Wattage
- 13,800
- Natural Gas — Running Wattage
- 11,200
- Natural Gas — Running Amperage at 120V
- 93.33A
- Natural Gas — Running Amperage at 240V
- 46.66A
- Natural Gas — Natural Gas fuel pressure requirements
- 6.0 – 9.0 inches of water column
- Natural Gas — Natural Gas BTU requirements at full load
- 295,000 BTU
- Engine Manufacturer
- DuroMax Power Equipment
- Engine Type
- 4-Stroke
- Valve Type
- OHV
- Engine Cooling Type
- Forced Air
- Engine Size
- 744cc
- Engine Speed
- Variable Speed (Dependent on load)
- Starting Type
- Push Button
- Electric Start
- Yes
- Recoil Start
- No
- Remote Start
- Yes
- Idle Control
- Demand Based Variable Idle
- Fuel Delivery System
- Carburetor
- Fuel Types
- Gasoline, Propane, and Natural Gas
- Oil Cooling Type
- Pressure and Splash
- Recommended Oil
- 10W-30
- Recommended Oil Types
- Blended, Conventional, or Synthetic
- Oil Capacity
- 50.7 fluid oz
- Suggested Propane Tank Size
- 100 lbs. minimum
- Automatic Low Oil Shutdown
- Yes
- Cast Iron Sleeve
- Yes
- Bearing Type
- 6003 Bearing
- CO Sensor Shutdown
- Yes
- EPA Certified
- Yes
- CARB Certified
- No
- 50 State Compliant
- No
- GFCI Outlets
- Yes
- Battery Switch
- Yes
- Battery Tender Port
- Yes
- Battery Tender
- Yes
- Volt Meter
- Digital
- Hour Meter
- Yes
- 5-20R
- 4
- 14-50R
- 2
- Manufacturer
- DuroMax Power Equipment
- Part #
- XP16000iHT
- Voltage
- 120/240 Volts
- Frequency
- 60 Hertz
- Total Harmonic Distortion (THD)
- <3%
- GFCI Outlets
- Yes
- 4 Foot Propane Hose & Regulator
- Included
- Winding Material
- 100% Copper Windings
- Automatic Voltage Regulator
- Yes
- Battery Type
- 12V AGM Battery
- Battery Included
- Yes
- RV Ready
- Yes
- Fuel Tank Capacity Gasoline
- 10.5 Gallons
- Fuel Gauge
- Yes
- All Metal Construction
- Yes
- Product Dimensions
- 38.3"-Long x 30.8"-Wide x 34.4"-High
- Product Dry Weight
- 368-lbs
- Volume @ 25% Load (db)
- 66.9 dB
- UPC
- 811640017040
- Wheel Type
- Metal Hub
- What's in the Box?
- XP16000iHT Generator, Oil Funnel, Spark Plug Wrench, Tool Set, Remote Control, Battery Tender, Propane Regulator, 15-Foot x 3/4-Inch Natural Gas Hose, and Owner's Manual
- Package Dimensions
- 40"L x 32"W x 35.5"H
Before you choose.
Will it run my equipment?
Compare the combined running and startup requirements, voltage and connectors with this exact configuration. Do not treat peak output as continuous output.
Does this replace a professionally installed system?
Keep this fuel-powered generator outdoors, away from doors, windows and vents. Connecting it to building wiring requires appropriate transfer equipment and qualified installation. A carbon monoxide sensor does not make indoor use safe.
Which configuration am I ordering?
XP16000iHT. Standalone generator configuration. Match the model and listed package contents before ordering.
