Description
Tri-fuel · XP15000HXT+
XP15000HXT+: 12,000 running watts. Three fuel choices.

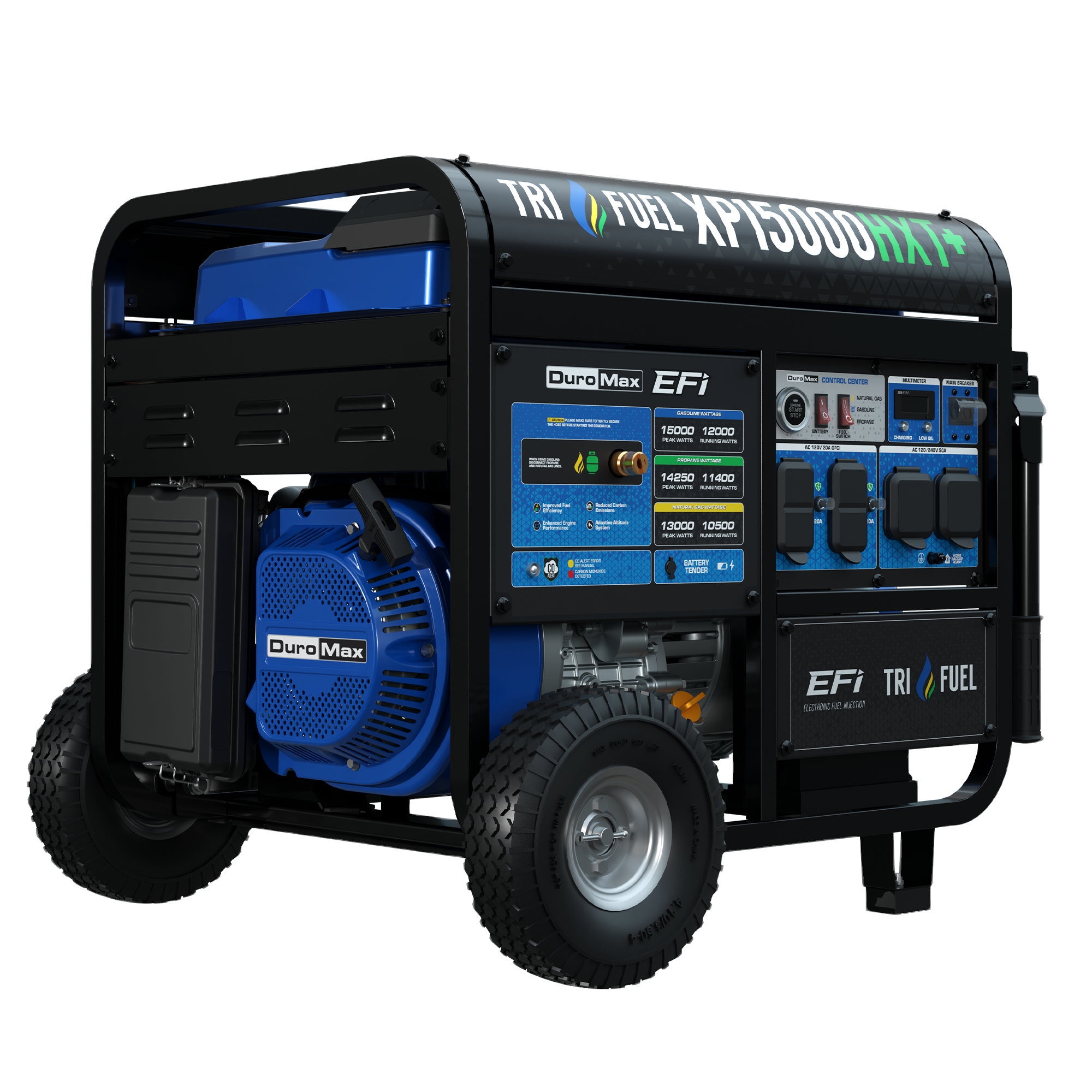

DuroMax XP15000HXT+ Tri-Fuel EFI Generator pairs 12,000W of gasoline running output with gasoline, propane, and natural gas operation. Build a larger selected-load backup plan, then size your connections around the exact fuel-specific ratings below.
Gasoline running output
Rated AC voltage
Fuel options
A third fuel option, with its own output rating.
The XP15000HXT+ adds natural gas to gasoline and propane operation. That gives a correctly installed setup another fuel supply option; it does not make the ratings interchangeable. Natural-gas output and the required supply connection must be checked separately before installation.
The listed starting rating is 15,000. Starting output covers brief startup demand; it is not the amount available continuously. Allow for equipment starting requirements as well as the combined running load.
Match the load. Choose the connection.
Running output and startup demand are different requirements. Add together the loads you plan to use simultaneously, then compare the applicable fuel-specific ratings. Runtime changes with load, fuel and conditions.
Keep this fuel-powered generator outdoors, away from doors, windows and vents. Connecting it to building wiring requires appropriate transfer equipment and qualified installation. A carbon monoxide sensor does not make indoor use safe.
Check your connections before you connect.
- GFCI Outlets
- Yes
- 5-20R
- 4
- L5-30R
- 0
- L14-30R
- 0
- 14-50R
- 2
- GFCI Outlets
- Yes
The selected equipment package.
XP15000HXT+ Generator, Oil Funnel, Spark Plug Wrench, Tool Set, Wheel & Handle Kit, 25-Foot x 1/2-Inch Natural Gas Hose, Propane Regulator, Remote Control, Battery Tender and Owner's Manual
Exact-model specifications.
- Gasoline — Peak Wattage
- 15,000
- Gasoline — Running Wattage
- 12,000
- Gasoline — Running Amperage at 120V
- 100
- Gasoline — Running Amperage at 240V
- 50
- Gasoline — Runtime at 25% Load
- 17.9 hrs
- Gasoline — Runtime at 50% Load
- 12 hrs
- Propane — Peak Wattage
- 14,250
- Propane — Running Wattage
- 11,400
- Propane — Running Amperage at 120V
- 95
- Propane — Running Amperage at 240V
- 47.5
- Propane — Runtime at 25% Load
- 25 hrs (60 lb.)
- Propane — Runtime at 50% Load
- 13 hrs (60 lb.)
- Natural Gas — Peak Wattage
- 13,000
- Natural Gas — Running Wattage
- 10,500
- Natural Gas — Running Amperage at 120V
- 85.5
- Natural Gas — Running Amperage at 240V
- 43.75
- Natural Gas — Natural Gas fuel pressure requirements
- 6.0 – 9.0 inches of water column
- Natural Gas — Natural Gas BTU requirements at full load
- 278,000 BTU
- Engine Manufacturer
- DuroMax Power Equipment
- Engine Type
- 4-Stroke
- Valve Type
- OHV
- Engine Cooling Type
- Forced Air
- Engine Size
- 500cc
- Engine Speed
- 3600 RPM +/- 100 RPM
- Starting Type
- Push Button
- Electric Start
- Yes
- Recoil Start
- Yes
- Remote Start
- Yes
- Fuel Delivery System
- EFI (Electronic Fuel Injection)
- Fuel Types
- Gasoline, Propane, and Natural Gas
- Oil Cooling Type
- Pressure and Splash
- Recommended Oil
- 10W-30
- Recommended Oil Types
- Blended, Conventional, or Synthetic
- Oil Capacity
- 37.2 fl. oz. (1.1 L)
- Suggested Propane Tank Size
- 60 lbs. minimum
- Automatic Low Oil Shutdown
- Yes
- Cast Iron Sleeve
- Yes
- Bearing Type
- 6003 Sliding Bearing
- CO Sensor Shutdown
- Yes
- EPA Certified
- Yes
- CARB Certified
- Yes
- 50 State Emissions
- Yes
- GFCI Outlets
- Yes
- Battery Switch
- Yes
- Battery Tender
- Yes
- Volt Meter
- Digital
- Hour Meter
- Yes
- 5-20R
- 4
- L5-30R
- 0
- L14-30R
- 0
- 14-50R
- 2
- Manufacturer
- DuroMax Power Equipment
- Part #
- XP15000HXT+
- Voltage
- 120/240 Volts
- Frequency
- 60 Hertz
- Total Harmonic Distortion (THD)
- <5%
- GFCI Outlets
- Yes
- 4 Foot Propane Hose & Regulator
- Included
- Winding Material
- 100% Clean Copper Windings
- Automatic Voltage Regulator
- Yes
- Battery Type
- 12V AGM Battery
- Battery Included
- Yes
- Fuel Tank Capacity Gasoline
- 8.3 Gallons
- Fuel Gauge
- Yes
- All Metal Construction
- Yes
- Product Dimensions W/O Packaging
- 29.5"-Long x 28"-Wide x 26"-High
- Product Weight Dry Weight
- 237-lbs
- Product Weight w/ Packaging
- 245-lbs
- Volume @ 50% Load (db)
- 74 dB
- UPC
- 811640017156
- Wheel & Handle Kit
- Included
- Wheel Type
- Metal Hub
- Wheel Diameter
- 13-Inches
- Natural Gas Hose Included
- Yes – 25-Foot x 1/2-Inch Natural Gas Hose
- What's in the Box?
- XP15000HXT+ Generator, Oil Funnel, Spark Plug Wrench, Tool Set, Wheel & Handle Kit, 25-Foot x 1/2-Inch Natural Gas Hose, Propane Regulator, Remote Control, Battery Tender and Owner's Manual
Before you choose.
Will it run my equipment?
Compare the combined running and startup requirements, voltage and connectors with this exact configuration. Do not treat peak output as continuous output.
Does this replace a professionally installed system?
Keep this fuel-powered generator outdoors, away from doors, windows and vents. Connecting it to building wiring requires appropriate transfer equipment and qualified installation. A carbon monoxide sensor does not make indoor use safe.
Which configuration am I ordering?
XP15000HXT+. Standalone generator configuration. Match the model and listed package contents before ordering.
