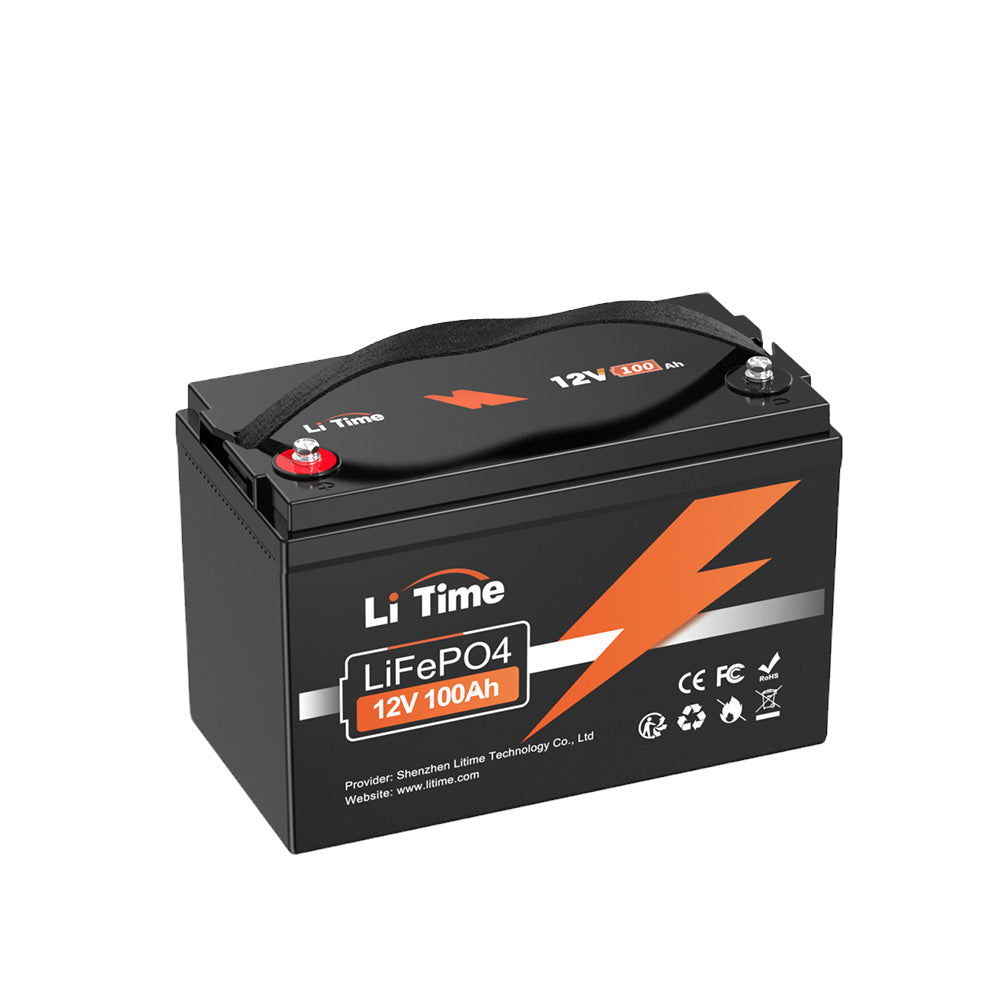

LiTime 12V 100Ah LiFePO4 Battery

Build storage around your system.

This LiTime 12V 100Ah LiFePO4 deep-cycle battery provides 1280Wh of energy capacity in a Group 31 format.

Choose a storage battery by the application, the charging requirements and the space available. This listing is for one battery, giving you a defined starting point for a compatible energy-storage installation rather than a complete plug-in power station.

100Ah

Rated capacity

1280Wh

Energy capacity

24.25lb

Listed weight

A deep-cycle battery for stored energy.

The 100Ah rating and 1280Wh energy figure describe the battery’s storage capacity. The manufacturer-listed 1280W output figure is a separate specification. Check your connected equipment and system design instead of treating capacity and output as interchangeable.

Built-in battery-management protection is part of the battery’s design. A suitable charging system and correctly sized installation are still essential. Match the charger profile and electrical equipment to this LiFePO4 battery and the manufacturer’s requirements.

Check the physical fit before installation.

The listed case dimensions are 13 × 6.77 × 8.43 inches, with a listed weight of 24.25lb. Check the complete mounting area, cable routing and terminal access in your installation. Group 31 identifies the format; it should not replace a measurement of the available space.

The manufacturer lists compatible series/parallel expansion up to 4S4P. An expanded bank needs the correct matching, connection and protection arrangements. Use the manufacturer’s instructions for the actual configuration.

One battery. Choose the charger separately.

This offer is for one battery; the charger is sold separately. It is an energy-storage battery, not a starter battery. If your application needs engine cranking, choose a product specifically specified for that purpose.

Specifications and selected configuration

12V 100Ah LiFePO4 deep-cycle battery
1280Wh energy capacity
1280W manufacturer-listed output power
Built-in battery-management protection
Group 31 battery format
Dimensions:13×6.77×8.43 inches
Weight:24.25lb.
Manufacturer lists compatible series/parallel expansion up to 4S4P
For energy storage; not a starter battery
This listing is one battery;charger sold separately

Before you choose

Is a charger included?

No. This listing is for one battery, and the charger is sold separately.

Can I use it as an engine-starting battery?

No. The accepted specification identifies this battery for energy storage and explicitly excludes starter-battery use.

Can I expand the battery bank?

The manufacturer lists compatible series/parallel expansion up to 4S4P. Follow the matching and installation requirements for the intended arrangement.
